TECHNICAL SPECIFICATIONS:
| MATERIAL TYPE | : | COMPRESSED ASBESTOS FIBER (CAF) |
| THICKNESS | : | 0.25mm, 0.5mm, 0.8mm, 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm , 6mm (OTHER THICKNESS ON REQUEST) |
| SURFACE FINISH | : | Red, Grey , Graphited (OTHER COLORS ON REQUEST) |
| DIMENSIONS OF SHEETS | : | 1500MM X3100MM, 1500MM X1500MM, 1500MM X 1000MM, 1500MM X 2000MM, 1270MM X 1270MM, 1270MM X 3810MM, 3000MM X 3000MM |

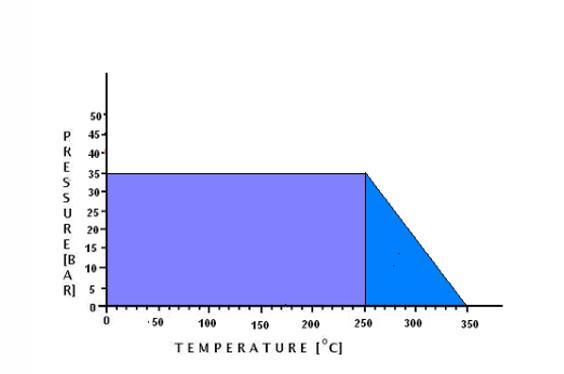

| OPERATING CONDITION | : | Maximum pressure : 35 Bar Maximum Temperature: 350 |
| SPECIFICATION COMPLIANCE | : | IS: 2712 / 1998 GRADE W / 3 |
| S.NO. | Typical Properties | Test Method | Unit | Specified Value |
| 1 | DENSITY | IS:2712/1998 | G/cm3 | 2.20 |
| 2 | TENSILE STRENGTH | IS:2712/1998 | Mpa | >6.7 |
| 3 | COMPRESSIBILITY IS:2712/1998 | IS:2712/1998 | % | 6 -14 |
| 4 | RECOVERY | IS:2712/1998 | % | >40 |
| 5 | FLEXIBILITY | IS:2712/1998 | – | No Visual |
| 6 | IGNITION LOSS | IS:2712/1998 | % | <28 |
All information and recommendations given in this brochure are correct to the best of our knowledge. However, in view of the wide varsity of possible installation and operating conditions one cannot draw the final conclusion in all application cases regarding the behaviour in a gasket joint. Therefore, information can only serve as a guideline.
