| Properties | Test Method | Unit | Specified Value |
| Density | gm/cm3 | 1.70-2.00 | |
| Tensile Strength | |||
| (a) ACC to ASTM F 152 (Across Grain) | N/mm2 | 10.5 | |
| (b) ACC to DIN 52910 (Across Grain) | N/mm2 | – | |
| Compressibility | ASTM F36A | % | 7.0-17.0 |
| Recovery | ASTM F36A | % | >40 |
| In Acid Thickness Increase | |||
| 96 % H2SO4 Acid (48hrs.at23OC) 65 % H2SO4 Acid (48hrs.at23OC) 40 % HNO3 Acid (48hrs.at23OC) |
% % % |
% % % |
25 15 15 |
| Ignition Loss | DIN 52911 | % | <28 |
| Sealability Against Nitrogen | DIN 3535 | CM3/min | <1.5 |

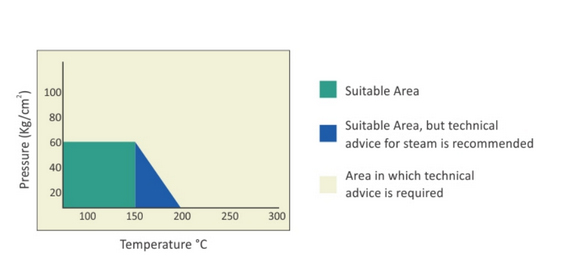

| Max. Peak Temperature | oC | 200 | |
| Max. Continuous Temperature | oC | 150 | |
| Max. Operating Pressure | Kg/CM2 | 60 |
