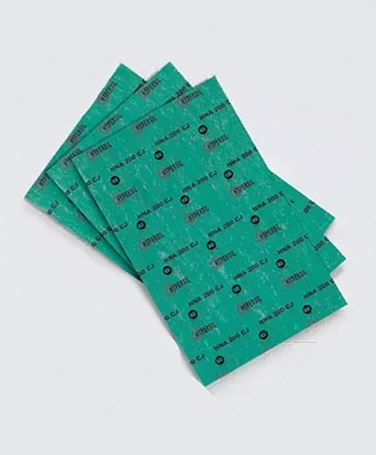

HNA 200 CJ – NSF Certified

Non Asbestos Jointing Gasket Material

MATERIAL COMPOSITION:

Made from ARAMID / CELLULOSE Fiber with mineral fibre and inorganic bonded with synthetic NBR Elastomers.

APPLICATIONS:

Suitable for drinking water, approved NSF USA.For the light to medium loading, suitable for low operating pressure e.g. Transformers, Steam, Air,
Water, Various alkaline Chemicals, Oils, Benzene under medium stress conditions, specially designed
for small engines like motorbike upto 350CC, single cylinder engines where max temp touches 300 oC

HNA 200 CJ – NSF Certified

Non Asbestos Jointing Gasket Material

MATERIAL COMPOSITION:

Made from ARAMID / CELLULOSE Fiber with mineral fibre and inorganic bonded with synthetic NBR Elastomers.

APPLICATIONS:

Suitable for drinking water, approved NSF USA.For the light to medium loading, suitable for low operating pressure e.g. Transformers, Steam, Air,
Water, Various alkaline Chemicals, Oils, Benzene under medium stress conditions, specially designed
for small engines like motorbike upto 350CC, single cylinder engines where max temp touches 300 oC
Product Enquiry

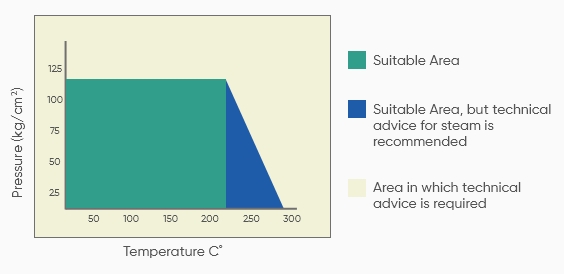

Diagram

Colour :
Green

TECHNICAL SPECIFICATIONS:

(Value Related to 1.50mm Thickness)



S.NO. Properties Test Method Unit Specified Value
1 DENSITY gm/cm3 1.70-2.00
2 IGNITION LOSS DIN 52911 % <35
3 COMPRESSIBILITY ASTM F36A % 7-15
4 RECOVERY ASTM F36A % >50
5 TENSILE STRENGTH ASTM F152 Mpa >9.0
6 MAX. PEAK TEMPERATURE oC 325
7 MAX. OPERATING PRESSURE Kg/cm2 120
8 MAX. CONTINUOUS TEMPERATURE oC 250
